Name: 48mm Radial Feeder(GS-RAD2203)-[with cutter]
Brand: Global Soul Limited
SKU: GS-RAD2203
Availability: InStock

家へ > 製品 > SMTフィーダー >

48mm Radial Feeder(GS-RAD2203)-[with cutter]

Place of Origin:

China

ブランド名:

Model Number:

GS-RAD2203

連絡ください

引金を求めてください

48mm Radial Feeder(GS-RAD2203)-[with cutter]

製品の詳細

Model:

GS-RAD2203

External dimensions (length * width * height）:

740*47*144(110)mm(The height from the bottom to the feeding port: 110cm Height at the highest point (from the bottom to the handle) : 144mm)

Weight:

6KG

Working voltage:

DC 24V

Gas source requirements:

Maximum current:

Feeding speed:

0.6-2s/Pcs

Drive mode:

Pure electric

Operation panel:

0.96-inch TFT color screen 80*160 pixels

Error in the length of the material cutting feet:

±0.2mm

Applicable to the hole spacing of the tape:

12.7mm/15mm(Parts need to be replaced)

Function of cutting waste tape:

Optional(DK-RAD2203: With a cutter DK-RAD2101: No cutter)

Bending function:

Optional separately(The bending function can be customized according to the material)

The number of times the cutter is used:

≥1 million

支払いおよび配送条件

Minimum Order Quantity

1 PCS

価格

USD+negotiable+pcs

Packaging Details

950*60*180mm

Delivery Time

1-7 days

Payment Terms

T/T

Supply Ability

1+pcs+per days

[Bending] Radial Feeder GS-RDD2105(L)

最高の価格を入手する

[Hook Type] Radial Feeder (GS-RDD2112)

最高の価格を入手する

Surface Mount Ic Tube Mounting (GS-SHQ2304)[Dual Track]

最高の価格を入手する

Surface Mount IC Tube Mounting (GS-SAQ2306)

最高の価格を入手する

連絡ください

86-0755-27678283

今連絡してください

製品説明

48mm Radial Feeder(GS-RAD2203)-[with cutter]

The Radial feeder is an electronic component supply device that maintains a certain interval and sends out the electronic components of the Radial tape packaging one by one at a specified time, cuts the lead wires, and supplies them to the insertion machine.

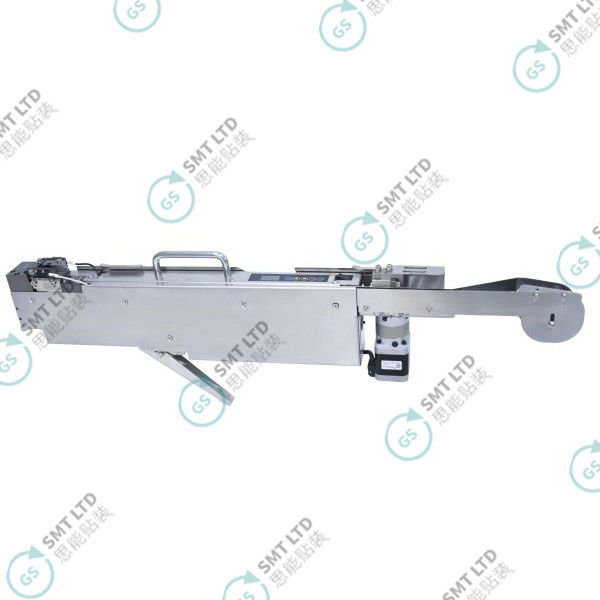

48mm Radial Feeder(GS-RAD2203)-[with cutter] 0

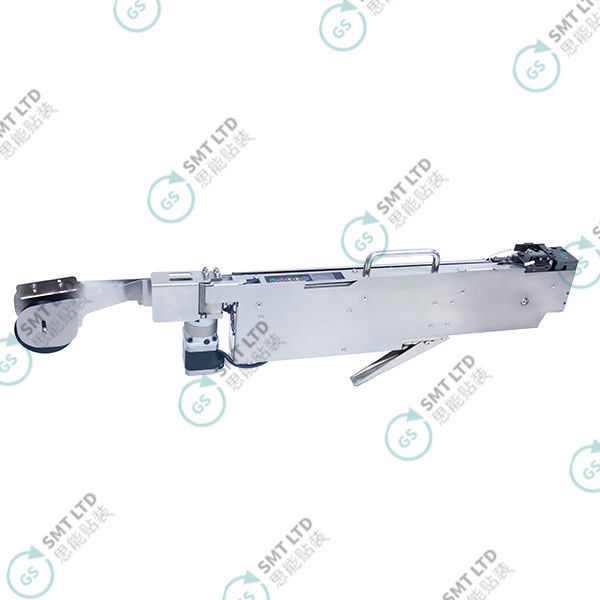

48mm Radial Feeder(GS-RAD2203)-[with cutter] 1

48mm Radial Feeder(GS-RAD2203)-[with cutter] 2

48mm Radial Feeder(GS-RAD2203)-[with cutter] 3

48mm Radial Feeder(GS-RAD2203)-[with cutter] 4

If there are special material dimensions, you can contact our company for consultation and to provide solutions and customize feeders.
